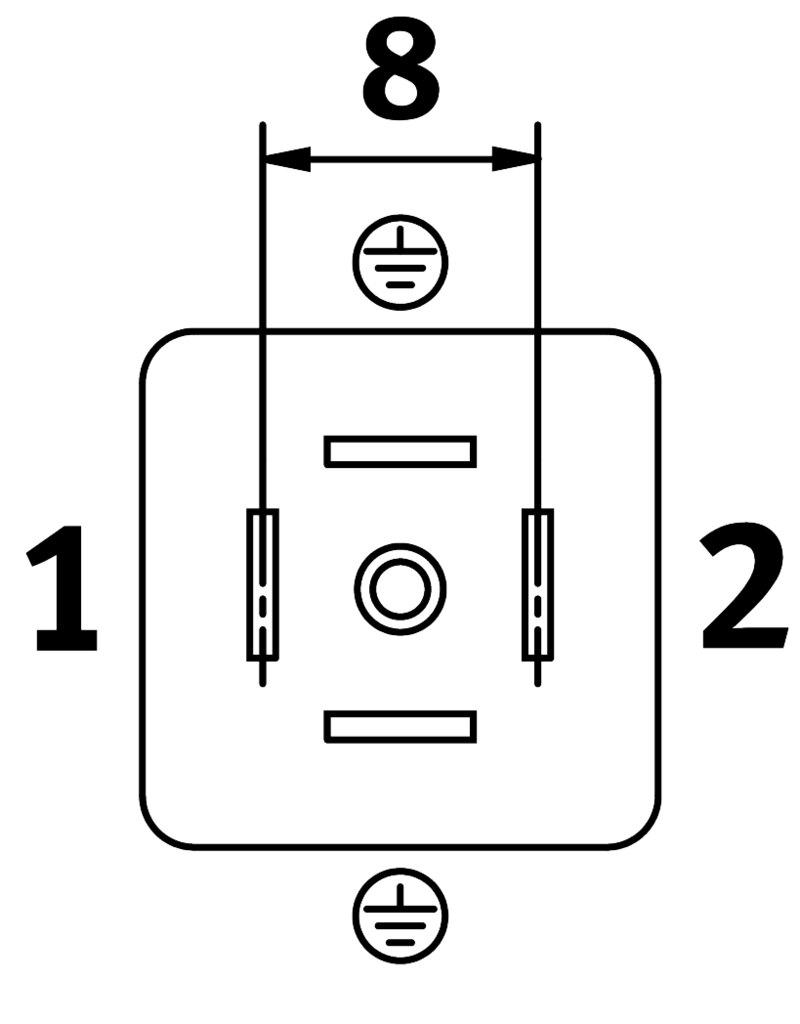

Reference imageConfirm configuration by manufacturer part number.
Festo
8032629
Connecting cable NEBV-C1SW3-K-5-N-LE3-S9
The Festo part number 8032629 is an industrial component weighing 235 g with a cable designation without label holder and a contact durability of 50. It features a field device side connection with a square, narrow angled socket that can be rotated through 180°, utilizing a type C connection diagram per EN 175301-803 with 4 pins and mounting via an M2.5 central screw on an air solenoid valve. The control side connection consists of an open-end cable with 3 pins, supporting a DC and AC operating voltage range of 0 V to 230 V alongside a current rating of 6 A at 40° C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032629
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032629.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 235 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket, narrow
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- Can be rotated through 180°
- Electrical connection 1, connection technology
- Connection diagram type C as per EN 175301-803
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- On air solenoid valve with M2.5 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 3
- DC operating voltage range
- 0 V...230 V
- Operating voltage range AC
- 0 V...230 V
- Current rating at 40° C
- 6 A
- Surge resistance
- 4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Available
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 52 mm
- Cable diameter
- 5.2 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032629. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
