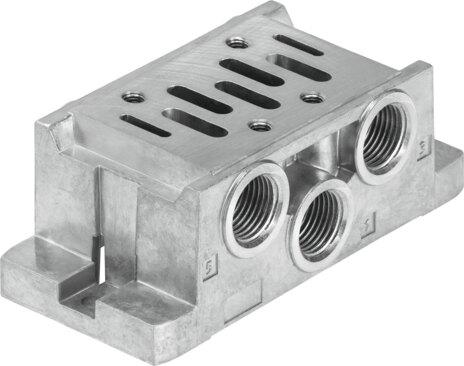

Name: Festo 8032642 Sub-base VABS-S1-1S-G38
Brand: Festo

Sub-base VABS-S1-1S-G38

This Festo industrial component, part number 8032642, features an ISO 5599-1 standardized design with a width of 48 mm and a maximum of 1 valve position. Weighing 230 g, it operates within a pressure range of -0.09 MPa to 1.6 MPa and supports vacuum applications with adjustable exhaust air function. Mounting is achieved via through-holes for M5 screws, utilizing G3/8 pneumatic connections and G1/8 pilot air ports 12/14. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8032642
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8032642.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 48 mm
Exhaust air function: Adjustable
Based on norm: ISO 5599-1
Max. no. of valve positions: 1
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Pilot pressure MPa: 0 MPa...1.6 MPa
Pilot pressure: 0 bar...16 bar
Suitability for vacuum: Yes
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...60 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...60 °C
Product weight: 230 g
Type of mounting: with through-hole for M5 screw
Pilot air port 12/14: G1/8
Pneumatic connection 1: G3/8
Pneumatic connection 2: G3/8
Pneumatic connection 3: G3/8
Pneumatic connection 4: G3/8
Pneumatic connection 5: G3/8
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8032642. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
