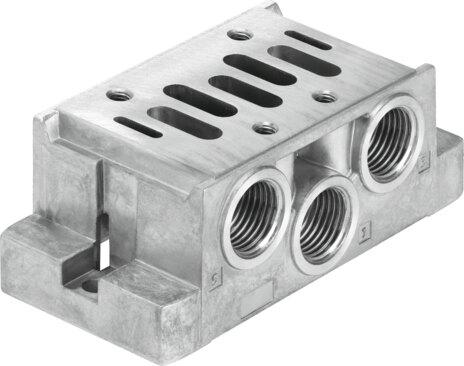

Name: Festo 8032644 Sub-base VABS-S1-2S-G12
Brand: Festo

Sub-base VABS-S1-2S-G12

This Festo industrial component, part number 8032644, features a width of 58 mm, an adjustable exhaust air function, and a maximum of 1 valve position based on the ISO 5599-1 norm. Weighing 380 g, it operates within a pressure range of -0.09 MPa to 1.6 MPa and a pilot pressure of 0 MPa to 1.6 MPa, offering suitability for vacuum applications utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. The unit includes a G1/2 pneumatic connection 1, G1/8 pilot air ports 12/14, and mounts via through-holes for M6 screws while supporting a medium, ambient, and storage temperature range between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8032644
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8032644.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 58 mm
Exhaust air function: Adjustable
Based on norm: ISO 5599-1
Max. no. of valve positions: 1
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Pilot pressure MPa: 0 MPa...1.6 MPa
Pilot pressure: 0 bar...16 bar
Suitability for vacuum: Yes
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...60 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...60 °C
Product weight: 380 g
Type of mounting: with through-hole for M6 screw
Pilot air port 12/14: G1/8
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Pneumatic connection 3: G1/2
Pneumatic connection 4: G1/2
Pneumatic connection 5: G1/2
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8032644. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
