Festo
8032645

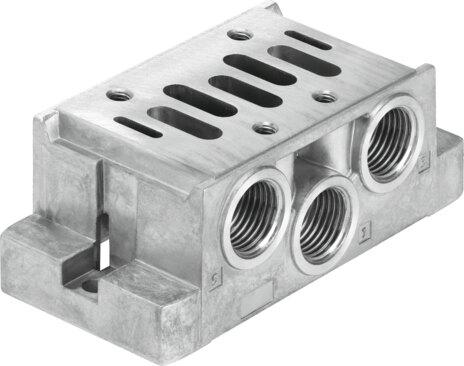

Sub-base VABS-S1-2S-N12
Engineered by Festo with a width of 58 mm and based on the ISO 5599-1 norm, part number 8032645 is a single-position industrial component supporting an operating pressure range of -0.9 bar to 16 bar and vacuum applications. The unit features 1/2 NPT pneumatic connection 1, 1/8 NPT pilot air ports 12/14, adjustable exhaust air function, and through-hole mounting for M6 screws, operating with compressed air meeting ISO 8573-1:2010 [7:4:4] standards where oil lubrication is possible and required for continued use. Submit the exact part number, quantity, and application requirements to request a quote for this 380 g component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032645
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032645.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 58 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Max. no. of valve positions
- 1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Pilot pressure MPa
- 0 MPa...1.6 MPa
- Pilot pressure
- 0 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 380 g
- Type of mounting
- with through-hole for M6 screw
- Pilot air port 12/14
- 1/8 NPT
- Pneumatic connection 1
- 1/2 NPT
- Pneumatic connection 2
- 1/2 NPT
- Pneumatic connection 3
- 1/2 NPT
- Pneumatic connection 4
- 1/2 NPT
- Pneumatic connection 5
- 1/2 NPT
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032645. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
