Festo
8032646

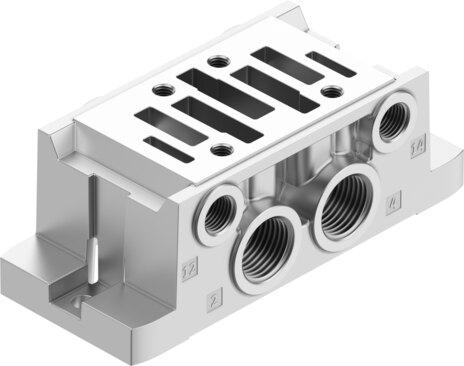

Sub-base VABS-S1-1HS-G38
This Festo industrial component, part number 8032646, features a width of 48 mm, an adjustable exhaust air function, and a maximum of 1 valve position based on the ISO 5599-1 norm. Weighing 230 g, it operates within a pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa), supports vacuum applications, and mounts using a through-hole for an M5 screw with G3/8 pneumatic connection 1 and G1/8 pilot air port 12/14. The unit functions with compressed air as per ISO 8573-1:2010 [7:4:4] across a medium temperature of -10 °C to 50 °C, allows for oil lubrication, and carries a corrosion resistance class of CRC 0. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032646
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032646.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 48 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Max. no. of valve positions
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0 MPa...1.6 MPa
- Pilot pressure
- 0 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 230 g
- Type of mounting
- with through-hole for M5 screw
- Pilot air port 12/14
- G1/8
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 4
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032646. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
