Festo
8032662

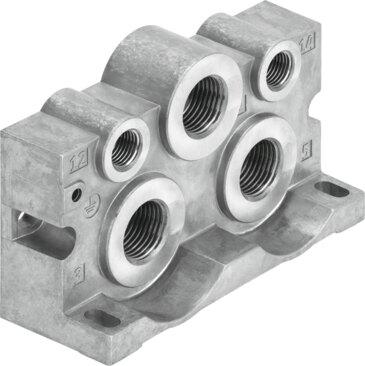

End plate VABE-S1-1L-G12
The Festo industrial component, part number 8032662, is built on the ISO 5599-1 norm with a 44 mm width and a die-cast aluminum end plate weighing 400 g. It features adjustable exhaust air function, G1/2 pneumatic connections for ports 1, 3, and 5, and operates within a pressure range of -0.09 MPa to 1.6 MPa while supporting vacuum applications with compressed air media. Mounting is achieved using through-holes for M6 screws, and the unit complies with RoHS and VDMA24364-B1/B2-L LABS standards under CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032662
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032662.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 400 g
- Type of mounting
- with through-hole for M6 screw
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 5
- G1/2
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032662. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
