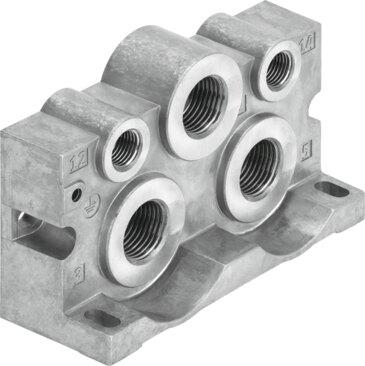

Reference imageConfirm configuration by manufacturer part number.
Festo
8032663
End plate VABE-S1-1L-N12
The Festo part number 8032663 is an industrial component featuring a 44 mm width, a die-cast aluminum end plate, and through-hole mounting for an M6 screw with a total product weight of 400 g. It operates within a pressure range of -0.09 MPa to 1.6 MPa (-0.9 bar to 16 bar) and supports vacuum operation alongside adjustable exhaust air functions, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] for both operating and pilot media. This unit is constructed with 1/2 NPT pneumatic connections for ports 1, 3, and 5, complies with ISO 5599-1 norms, and is RoHS compliant with a CRC rating of 0. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 400 g
- Type of mounting
- with through-hole for M6 screw
- Pneumatic connection 1
- 1/2 NPT
- Pneumatic connection 3
- 1/2 NPT
- Pneumatic connection 5
- 1/2 NPT
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum
