Festo
8032664

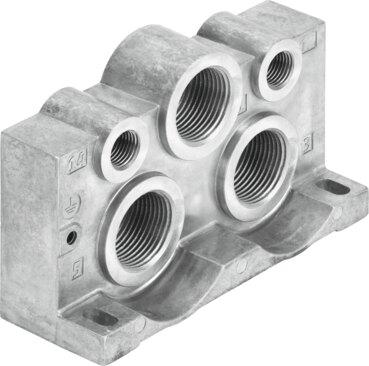

End plate VABE-S1-2LZ-G34
The Festo 8032664 industrial component is built on the ISO 5599-1 norm with a width of 44 mm and a product weight of 360 g, featuring an adjustable exhaust air function. It operates within a pressure range of -0.09 MPa to 1.6 MPa (-0.9 bar to 16 bar) and includes suitability for vacuum, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] for both operating and pilot media with oil lubrication possible. Mounting is achieved using a through-hole for an M6 screw, connecting via G3/4 pneumatic ports 1, 3, and 5 alongside G1/4 pilot air ports 12/14. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032664
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032664.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 360 g
- Type of mounting
- with through-hole for M6 screw
- Pilot air port 12/14
- G1/4
- Pneumatic connection 1
- G3/4
- Pneumatic connection 3
- G3/4
- Pneumatic connection 5
- G3/4
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032664. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
