Festo
8032668

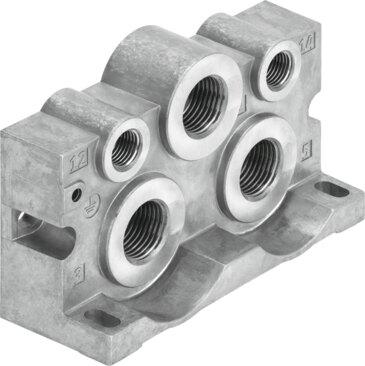

End plate VABE-S1-1RZ-G12
This Festo industrial component, part number 8032668, features a width of 44 mm, an adjustable exhaust air function, and a construction based on the ISO 5599-1 norm. It operates within a pressure range of -0.09 MPa to 1.6 MPa (-0.9 bar to 16 bar), is suitable for vacuum applications, and supports compressed air operating and pilot media conforming to ISO 8573-1:2010 [7:4:4] with oil lubrication possible. Weighing 410 g with a CRC 0 corrosion resistance class, the unit mounts via a through-hole for an M6 screw and includes G1/2 pneumatic connections 1, 3, and 5 alongside G1/4 pilot air ports 12/14. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032668
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032668.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 410 g
- Type of mounting
- with through-hole for M6 screw
- Pilot air port 12/14
- G1/4
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 5
- G1/2
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032668. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
