Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

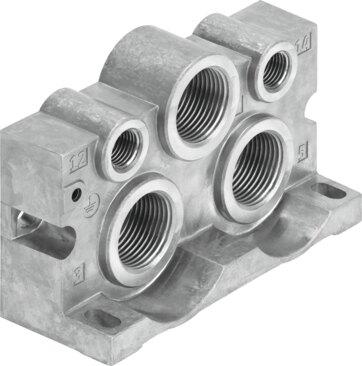

Reference imageConfirm configuration by manufacturer part number.
Festo
8032674
End plate VABE-S1-2R-G34
Manufactured by Festo, part number 8032674 is an industrial component with a 44 mm width and a die-cast aluminum end plate based on the ISO 5599-1 norm. It operates within a pressure range of -0.09 MPa to 1.6 MPa, supports vacuum applications, and features G3/4 pneumatic connections for ports 1, 3, and 5 along with adjustable exhaust air functionality. The unit weighs 370 g, mounts via through-holes for M6 screws, and requires compressed air matching ISO 8573-1:2010 [7:4:4] with oil lubrication possible for continued use. Submit your exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032674
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032674.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 370 g
- Type of mounting
- with through-hole for M6 screw
- Pneumatic connection 1
- G3/4
- Pneumatic connection 3
- G3/4
- Pneumatic connection 5
- G3/4
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032674. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
