8032867

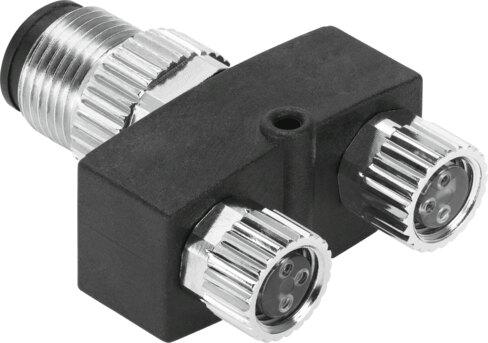

Name: Festo 8032867 Distributor NEDY-
Brand: Festo

Distributor NEDY-

The Festo 8032867 industrial component features a Y-distributor structural design with options for cables on the field device side, controller side, both ends, or without a cable, incorporating a yellow LED signal status display and holding current reduction. Built to EN 175301-803, EN 61076-2-101, and EN 61076-2-104 norms with RCM compliance, it mounts via a through-hole for an M2 screw or with accessories. Electrical connection 1 functions on the control side with M12x1 A-coded, M8x1 A-coded, or open-end technology, while electrical connection 2 operates on the field device side with square or round designs. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8032867
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8032867.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 175301-803 | EN 61076-2-101 | EN 61076-2-104
Certication: RCM compliance mark
Structural design: Y-distributor with cable on eld device side | Y-distributor with cable on eld device/controller side | Y-distributor with cable on controller side | Y-distributor with cables at both ends | Y-distributor without cable
Signal status display: Yellow LED
Additional functions: Holding current reduction
Type of mounting: With through-hole for M2 screw | With accessories
Electrical connection 1, function: Control side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Cable | Plug
Electrical connection 1, cable outlet: Straight | Angled
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101 | M8x1 A-coded as per EN 61076-2-104 | Open end
Electrical connection 1, number of pins/wires: 3 | 4
Electrical connection 1, occupied pins/wires: 3 | 4
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF13 and vertical knurling | Screw-type lock with hexagon AF 9 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 2, function: Field device side
Electrical connection 2, design: Square | Round
Electrical connection 2, connection type: 2x port | 2x cables
Electrical connection 2, cable outlet: Straight | Angled

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8032867. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
