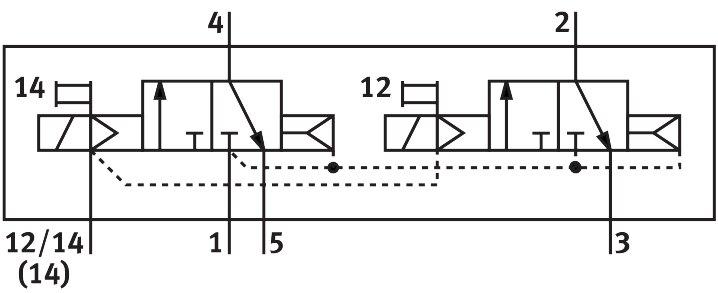

Reference imageConfirm configuration by manufacturer part number.
Festo
8033036
Air solenoid valve VSVA-B-T32C-AZH-A1-1T1L
The Festo 8033036 is an electrical 2x3/2 closed, monostable piston gate valve featuring a width of 26 mm, soft sealing principle, and a normal nominal flow rate of 900 l/min normalized to DIN 1343. Operating at 24V DC with an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this piloted component includes a non-detenting manual override, LED signal status display, and adjustable exhaust air function via a throttle plate or individual sub-base. It is c UL us-recognized (OL) with an IP65 and NEMA 4 degree of protection, and it accommodates pneumatic working ports via a 26 mm ISO 15407-1 sub-base, VDMA 24563 connecting plate size 01, or G1/4 connection. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033036
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033036.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | Connecting plate size 01 according to VDMA 24563 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1250 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1100 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1150 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 900 l/min
- Switching time off
- 38 ms
