Festo
8033054

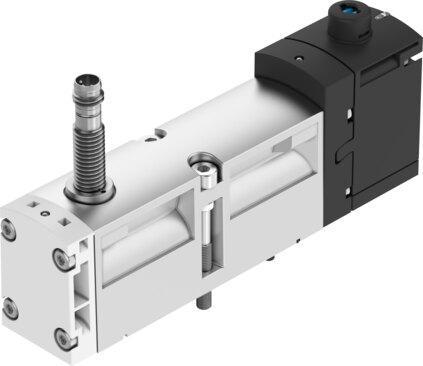

Air solenoid valve VSVA-B-M52-MZH-A1-1T1L-ANP
The Festo 8033054 is a 26 mm wide industrial component featuring a 5/2-way monostable valve function and a piston gate valve structural design with soft sealing. This electrically actuated, piloted component delivers a normal nominal flow rate of 1100 l/min through a sub-base pneumatic working port compliant with ISO 15407-2 and G1/4, operating across a pressure range of -0.09 MPa to 1 MPa. It incorporates a mechanical spring reset, non-detenting manual override, external pilot air supply, adjustable exhaust air function, and an inductive measuring principle supporting any mounting position and flow direction. Rated to IP65 and NEMA 4 with KC-EMV characters and CE marking per the EU EMC directive, this part accommodates flexible installation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033054
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033054.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm as per ISO 15407-2 | G1/4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Any
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Signal status display
- LED
- Switching position sensing
- Normal position with sensor
- Sensor switching status indication
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1400 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033054. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
