Reference imageConfirm configuration by manufacturer part number.
Festo
8033058

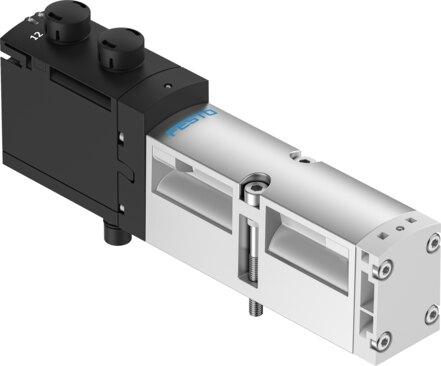

Air solenoid valve VSVA-B-P53EP-ZH-A1-1T1L
The Festo 8033058 is an electrical 5/3 exhausted piston gate valve featuring a 26 mm width, a 9 mm nominal width, and a normal nominal flow rate of 1000 l/min normalized to DIN 1343. Operating on 24V DC within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted component incorporates a soft sealing principle, positive overlap lap, mechanical spring and electrical reset methods, and IP65 and NEMA 4 degrees of protection. It utilizes a sub-base pneumatic working port (size 26 mm as per ISO 15407-2 or G1/4), external pilot air supply port, adjustable exhaust air function, non-detenting manual override, non-reversible flow direction, and an LED signal status display for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033058
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033058.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- Sub-base, size 26 mm as per ISO 15407-2 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Electrical actuation
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1400 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1200 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1350 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1000 l/min
