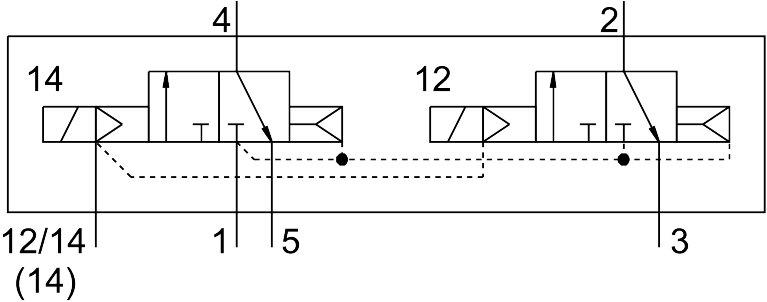

Reference imageConfirm configuration by manufacturer part number.
Festo
8033059
Air solenoid valve VSVA-B-T32C-AZ-A1-1T1L
The Festo 8033059 is an electrical piston gate valve featuring a 2x3/2 closed, monostable valve function and a 26 mm width with a 900 l/min normal nominal flow rate. This 24V DC component operates within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar) and includes IP65 and NEMA 4 degree of protection alongside c UL us recognition. It utilizes a soft sealing principle, piloted control with internal or external pilot air supply ports, and an adjustable exhaust air function via throttle plate or individual sub-base. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033059
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033059.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | Connecting plate size 01 according to VDMA 24563 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1250 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1100 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1150 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 900 l/min
- Switching time off
- 38 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033059. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
