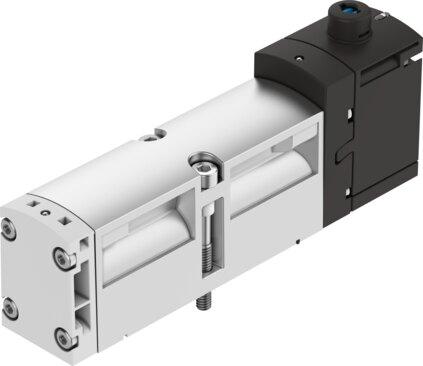

Reference imageConfirm configuration by manufacturer part number.
Festo
8033068
Air solenoid valve VSVA-B-M52-MZ-A1-1T1L
The Festo 8033068 is a 26 mm wide industrial component featuring a monostable 5/2-way valve function with electrical actuation and a piston gate valve structural design. Operating at 24V DC within a pressure range of -0.9 bar to 10 bar, this piloted unit delivers a normal nominal flow rate of 1100 l/min and incorporates a mechanical spring reset method, soft sealing principle, positive overlap, and a covered manual override. Housed with IP65 and NEMA 4 protection and carrying c UL us recognition, the device includes an LED signal status display, an adjustable exhaust air function, and supports internal or external pilot air supply with any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033068
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033068.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | Connecting plate size 01 according to VDMA 24563 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Any
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1400 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1200 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1350 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1100 l/min
