Festo
8033080

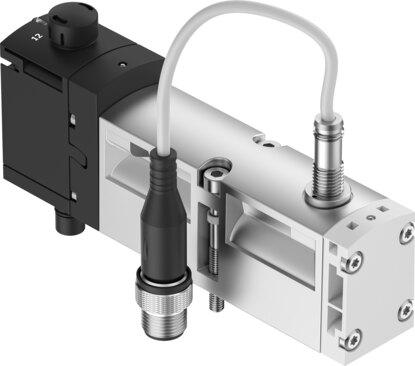

Air solenoid valve VSVA-B-M52-MZ-A1-1T1L-APX-0.5
Engineered with a 26 mm width and a 5/2-way monostable valve function, this Festo industrial component part number 8033080 utilizes a piston gate valve structural design with a soft sealing principle and mechanical spring reset method. The unit features an electrical actuation type with piloted control, external pilot air supply port, and a normal nominal flow rate of 1100 l/min normalized to DIN 1343 across an operating pressure range of -0.09 MPa to 1 MPa. It provides an IP65 and NEMA 4 degree of protection, CE marking as per the EU EMC directive, KC-EMV characters, and pneumatic working ports via a 26 mm sub-base complying with ISO 15407-2 or G1/4. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033080
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033080.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm as per ISO 15407-2 | G1/4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Any
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Signal status display
- LED
- Switching position sensing
- Normal position with sensor
- Sensor switching status indication
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1400 l/min
