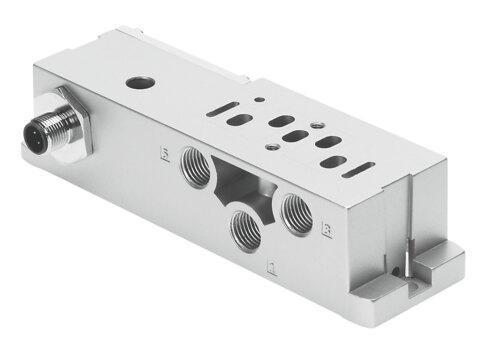

Name: Festo 8033155 Sub-base VABS-S4-2S-G18-R3-EX1E
Brand: Festo

Sub-base VABS-S4-2S-G18-R3-EX1E

The Festo part number 8033155 is an industrial component featuring an 18 mm width built on the ISO 15407-2 norm with any mounting position and an external pilot air supply port. Operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a 24 V DC operating voltage, it handles a 2 A current rating at 40° C with a surge resistance of 0.8 kV and contamination level 3. It carries CE and UKCA markings per EU and UK directives for low voltage, RoHS, and explosion protection, including ATEX Zone 2 and EPL Gc (GB) certifications with an explosive ambient temperature of -5°C <= Ta <= +50°C, IIC explosion group, and Ex ec IIC T3 Gc X gas ignition protection. Designed for compressed air operating medium as per ISO 8573-1:2010 [7:4:4] with oil lubrication capability required for further use and a corrosion resistance class of CRC 0, this unit has no corrosion stress. Submit your exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033155
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033155.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 18 mm
Based on norm: ISO 15407-2
Mounting position: Any
Pilot air supply port: External
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
DC operating voltage range: 24 V
Surge resistance: 0.8 kV
Current rating at 40° C: 2 A
Contamination level: 3
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX) | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): acc. to UK EX instructions | To UK RoHS instructions | To UK instructions for electrical equipment
Explosion protection certication outside the EU: EPL Gc (GB)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX)
ATEX category gas: II 3G
Type of ignition protection for gas: Ex ec IIC T3 Gc X
Explosive ambient temperature: -5°C <= Ta <= +50°C
Explosion group of assembly: IIC
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Max. surface temperature of assembly: T3
Degree of protection: IP65 | NEMA 4 | In mounted state
Ambient temperature: -5 °C...50 °C
Product weight: 192 g
Type of mounting: With through-hole

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8033155. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
