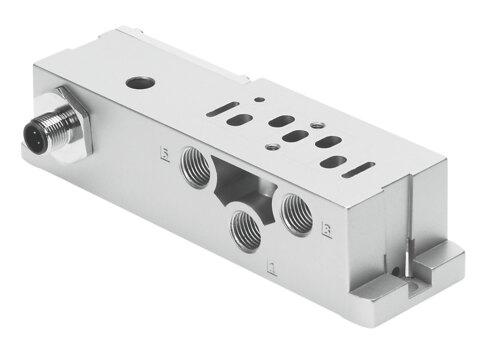

Reference imageConfirm configuration by manufacturer part number.
Festo
8033157
Sub-base VABS-S4-1S-G14-R3-EX1E
Festo Sub-base VABS-S4-1S-G14-R3-EX1E, part number 8033157, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8033157
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033157.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Width
- 26 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Pilot air supply port
- External
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- DC operating voltage range
- 24 V
- Surge resistance
- 0.8 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions | To UK instructions for electrical equipment
- Explosion protection certication outside the EU
- EPL Gc (GB)
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex ec IIC T3 Gc X
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Explosion group of assembly
- IIC
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. surface temperature of assembly
- T3
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 302 g
- Type of mounting
- With through-hole
