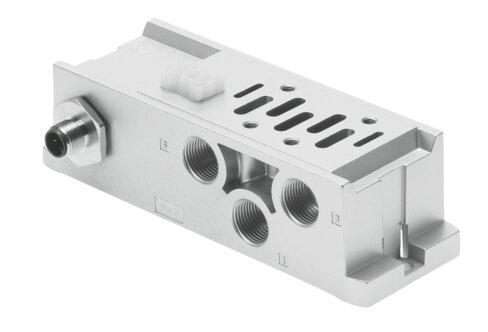

Name: Festo 8033159 Sub-base VABS-S2-1S-G38-R3-EX1E
Brand: Festo

Sub-base VABS-S2-1S-G38-R3-EX1E

The Festo 8033159 is an industrial component measuring 42 mm in width and built on the ISO 5599-2 norm for any mounting position. It operates on a 24 V DC operating voltage range with 0.8 kV surge resistance and a 2 A current rating at 40Þg C, featuring an external pilot air supply port and an operating pressure range of -0.09 MPa to 1 MPa. Rated for ATEX Zone 2 gas explosion prevention with IP65 and NEMA 4 degree of protection, this unit utilizes compressed air per ISO 8573-1:2010 [7:4:4] within an ambient temperature of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033159
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033159.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 42 mm
Based on norm: ISO 5599-2
Mounting position: Any
Pilot air supply port: External
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
DC operating voltage range: 24 V
Surge resistance: 0.8 kV
Current rating at 40° C: 2 A
Contamination level: 3
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion prevention and protection: Zone 2 (ATEX)
ATEX category gas: II 3G
Type of ignition protection for gas: Ex nA IIC T3 X Gc
Explosive ambient temperature: -5°C <= Ta <= +50°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4 | In mounted state
Ambient temperature: -5 °C...50 °C
Product weight: 386 g
Type of mounting: With through-hole
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8033159. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
