Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

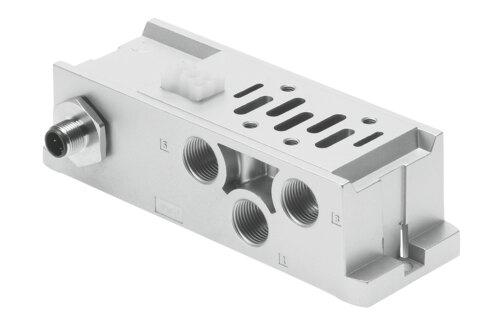

Reference imageConfirm configuration by manufacturer part number.
Festo
8033160
Sub-base VABS-S2-1S-G38-B-R3-EX1E
The Festo part number 8033160 is a 42 mm industrial component based on the ISO 5599-2 norm featuring an internal pilot air supply port and an operating pressure range of -0.09 MPa to 1 MPa. Rated for a 24 V DC operating voltage with a 2 A current rating at 40° C and 0.8 kV surge resistance, this unit holds an IP65 and NEMA 4 degree of protection in the mounted state across an ambient temperature range of -5 °C to 50 °C. It carries CE marking per the EU explosion protection directive for ATEX Zone 2 gas environments with II 3G category classification and Ex nA IIC T3 X Gc ignition protection within explosive ambient temperatures of -5°C to +50°C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033160
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033160.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- Internal
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- DC operating voltage range
- 24 V
- Surge resistance
- 0.8 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion prevention and protection
- Zone 2 (ATEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex nA IIC T3 X Gc
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 386 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033160. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
