8033161

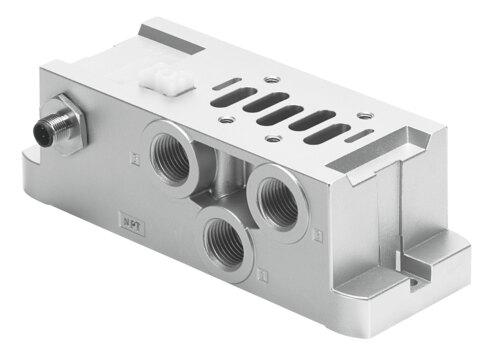

Name: Festo 8033161 Sub-base VABS-S2-2S-G12-R3-EX1E
Brand: Festo

Sub-base VABS-S2-2S-G12-R3-EX1E

The Festo 8033161 is an industrial component measuring 52 mm in width, designed on the ISO 5599-2 norm with an external pilot air supply port and any mounting position. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a DC operating voltage of 24 V, featuring a 2 A current rating at 40° C, 0.8 kV surge resistance, and contamination level 3. Certified with CE marking per the EU explosion protection directive (ATEX) for Zone 2 (ATEX category gas II 3G with Ex nA IIC T3 X Gc ignition protection), it functions in explosive ambient temperatures from -5°C to +50°C using compressed air as per ISO 8573-1:2010 [7:4:4] with required oil lubrication. The unit provides IP65 and NEMA 4 degree of protection in mounted state, 0 - No corrosion stress CRC, VDMA24364-B1/B2-L LABS conformity, and an overall ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033161
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033161.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 52 mm
Based on norm: ISO 5599-2
Mounting position: Any
Pilot air supply port: External
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
DC operating voltage range: 24 V
Surge resistance: 0.8 kV
Current rating at 40° C: 2 A
Contamination level: 3
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion prevention and protection: Zone 2 (ATEX)
ATEX category gas: II 3G
Type of ignition protection for gas: Ex nA IIC T3 X Gc
Explosive ambient temperature: -5°C <= Ta <= +50°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4 | In mounted state
Ambient temperature: -5 °C...50 °C
Product weight: 815 g
Electrical connection: Round plug M12x1.5
Type of mounting: With through-hole
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8033161. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
