Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

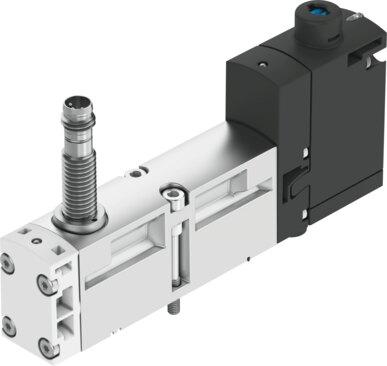

Reference imageConfirm configuration by manufacturer part number.
Festo
8033459
Air solenoid valve VSVA-B-M52-MZTR-A2-1T1L-APX-0.5
The Festo 8033459 is an electrical 5/2-way monostable industrial component featuring a piston gate valve structural design with a soft sealing principle and a nominal width of 5 mm. This piloted unit operates at a normal nominal flow rate of 550 l/min across an operating pressure range of -0.09 MPa to 1 MPa, incorporating a mechanical spring reset method, external pilot air supply port, and adjustable exhaust air function via throttle plate or individual sub-base. Built with an IP65 and NEMA 4 degree of protection, it utilizes an 18 mm width conforming to ISO 15407-2 for G1/8 pneumatic working ports and includes both detenting and non-detenting manual override options. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033459
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033459.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min
- Pneumatic working port
- Sub-base, size 18 mm according to ISO 15407-2 | G1/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Signal status display
- LED
- Switching position sensing
- Normal position with sensor
- Sensor switching status indication
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033459. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
