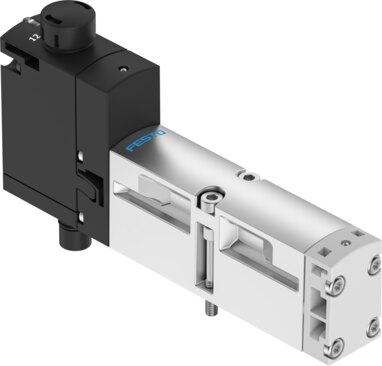

Reference imageConfirm configuration by manufacturer part number.
Festo
8033488
Air solenoid valve VSVA-B-M52-AZ-A2-1T1L
The Festo 8033488 is an 18 mm wide electrical 5/2-way monostable industrial component utilizing a piston gate valve structural design with a soft sealing principle and positive overlap. Featuring a normal nominal flow rate of 550 l/min, it operates at voltages of 24V DC and pressures ranging from -0.09 MPa to 1 MPa, supported by a pneumatic spring reset method, internal or external pilot air supply, and adjustable exhaust air function via throttle plate or individual sub-base. Certified as c UL us recognized (OL) with an IP65 and NEMA 4 degree of protection, the unit includes a covered manual override, LED signal status display, and pneumatic working ports conforming to ISO 15407-1, VDMA 24563, and G1/8 standards for any mounting position with bidirectional flow. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min
- Pneumatic working port
- Sub-base, size 18 mm as per ISO 15407-1 | Connecting plate size 02 according to VDMA 24563 | G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Any
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 750 l/min
- Flow rate of pneumatic valve on individual sub-base
- 600 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 700 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 550 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
