8033526

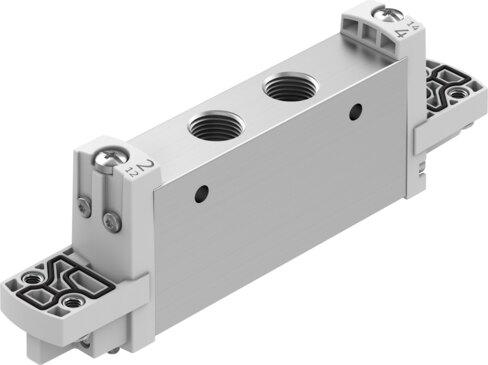

Name: Festo 8033526 Air solenoid valve VUVG-L14-T32C-M-G18-P1
Brand: Festo

Air solenoid valve VUVG-L14-T32C-M-G18-P1

The Festo 8033526 is a 14 mm electrical piston gate valve featuring a 2x3/2 closed, monostable valve function and an internal pilot air supply port with a positive overlap lap. This piloted component delivers a normal nominal flow rate of 520 l/min to 550 l/min at an operating pressure range of 0.3 MPa to 0.8 MPa across G1/8 pneumatic working ports, utilizing an adjustable exhaust air function with a soft sealing principle and mechanical spring reset. It carries IP65 protection when equipped with an electrical pilot valve and plug socket, alongside c UL us recognition by UL MH19482 and CE and UKCA markings per applicable EMC, low voltage, and RoHS directives for any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this industrial component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033526
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033526.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2 closed, monostable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 520 l/min...550 l/min
Pneumatic working port: G1/8
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: UL MH19482
Degree of protection: IP65 | With electrical pilot valve and plug socket
Nominal width: 4.3 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: Piloted
Pilot air supply port: Internal
Lap: Positive overlap
Pilot pressure MPa: 0.35 MPa...0.8 MPa
Pilot pressure: 3.5 bar...8 bar
Suitability for vacuum: No
Switching time oﬀ: 13 ms
On switching time: 14 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 700 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8033526. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
