Festo
8033532

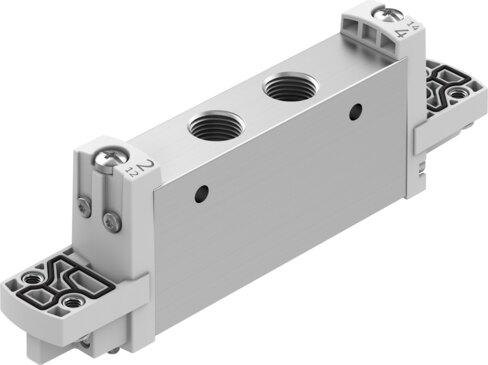

Air solenoid valve VUVG-L14-P53C-G18-P1
The Festo part number 8033532 is an electrically actuated 5/3-way closed industrial component featuring a 14 mm valve size and a piston gate valve structural design with a mechanical spring reset method. This piloted valve provides a normal nominal flow rate of 620 l/min to 650 l/min through G1/8 pneumatic working ports, operating within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). It includes an internal pilot air supply port, a 5.6 mm nominal width, adjustable exhaust air function, soft sealing principle, positive overlap lap, and IP65 degree of protection when equipped with the electrical pilot valve and plug socket. The unit bears c UL us recognition (UL MH19482) along with CE and UKCA markings conforming to applicable EU and UK directives for EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033532
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033532.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 620 l/min...650 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | With electrical pilot valve and plug socket
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 24 ms
- On switching time
- 14 ms
- Changeover time
- 20 ms
- Duty cycle
- 100%
