Name: Festo 8033536 Air solenoid valve VUVG-B14-T32U-AZ-F-P1
Brand: Festo

Air solenoid valve VUVG-B14-T32U-AZ-F-P1

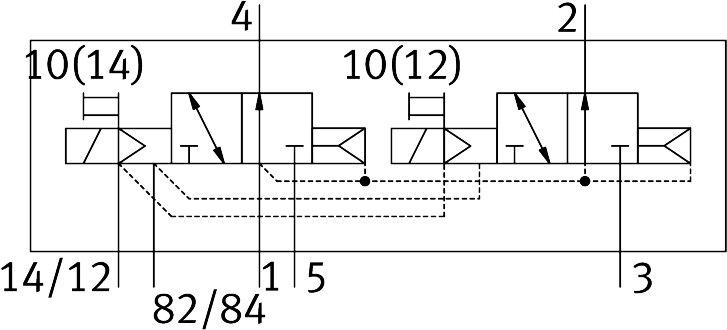

The Festo 8033536 is a 14 mm electrical piston gate valve featuring a 2x3/2 open monostable function, piloted control with an external pilot air supply port, and a normal nominal flow rate ranging from 510 l/min to 580 l/min. Designed with a soft sealing principle, positive overlap, and adjustable exhaust air function, this component operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and utilizes a pneumatic spring reset method with a flange pneumatic working port. It holds c UL us recognition (OL) via certificate UL MH19482, carries CE and UKCA markings per applicable EMC, low voltage, and RoHS directives, and achieves an IP65 degree of protection when equipped with the electrical pilot valve and plug socket for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033536
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033536.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2 open monostable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 510 l/min...580 l/min
Pneumatic working port: Flange
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: UL MH19482
Degree of protection: IP65 | With electrical pilot valve and plug socket
Nominal width: 4.6 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Pilot pressure MPa: 0.15 MPa...0.8 MPa
Pilot pressure: 1.5 bar...8 bar
Suitability for vacuum: No
Switching time oﬀ: 18 ms
On switching time: 11 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 700 µs
