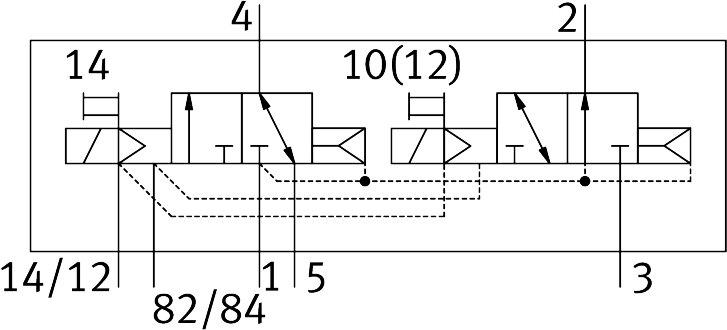

Reference imageConfirm configuration by manufacturer part number.
Festo
8033537
Air solenoid valve VUVG-B14-T32H-AZ-F-P1
The Festo part number 8033537 is an electrical piston gate valve featuring a 2x3/2 open/closed monostable valve function and a 14 mm valve size. This piloted component delivers a normal nominal flow rate ranging from 510 l/min to 580 l/min across an operating pressure of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) using an external pilot air supply port and pneumatic spring reset. It carries IP65 protection when equipped with the electrical pilot valve and plug socket, alongside c UL us recognition, CE marking, and UKCA marking. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033537
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033537.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 510 l/min...580 l/min
- Pneumatic working port
- Flange
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | With electrical pilot valve and plug socket
- Nominal width
- 4.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 18 ms
- On switching time
- 11 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033537. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
