Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8033539

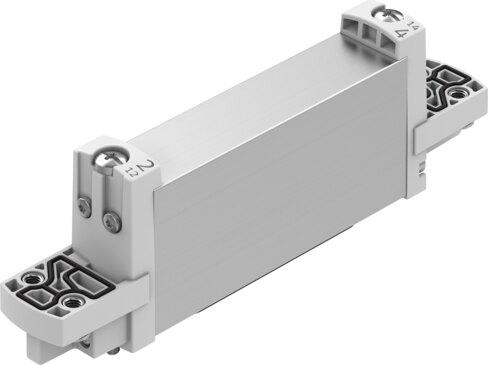

Air solenoid valve VUVG-B14-T32U-MZ-F-P1
The Festo 8033539 is an electrically actuated industrial component featuring a 2x3/2 open monostable valve function within a 14 mm valve size and a 4.3 mm nominal width. Operating via a piloted type of control with external pilot air supply and a soft sealing principle, this piston gate valve delivers a normal nominal flow rate of 410 l/min to 450 l/min across an operating pressure range of -0.09 MPa to 1 MPa. It incorporates a mechanical spring reset method, adjustable exhaust air function, positive overlap lap, and provides IP65 protection when equipped with an electrical pilot valve and plug socket. This unit holds c UL us recognition under certificate UL MH19482 and carries CE and UKCA markings conforming to applicable EU and UK directives for EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033539
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033539.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 410 l/min...450 l/min
- Pneumatic working port
- Flange
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | With electrical pilot valve and plug socket
- Nominal width
- 4.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Switching time off
- 13 ms
- On switching time
- 14 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033539. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
