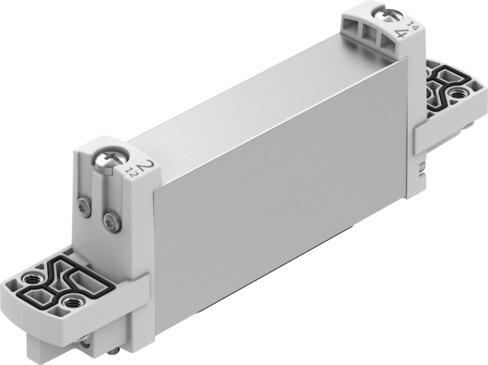

Reference imageConfirm configuration by manufacturer part number.
Festo
8033543
Air solenoid valve VUVG-B14-B52-Z-F-P1
The Festo 8033543 is a 14 mm electrical 5/2-way bistable piston gate valve featuring a soft sealing principle with positive overlap and an adjustable exhaust air function. It delivers a normal nominal flow rate between 570 l/min and 680 l/min across an operating pressure range of -0.9 bar to 10 bar, utilizing an external pilot air supply port with pilot pressures from 0.15 MPa to 0.8 MPa. Designed with IP65 degree of protection when equipped with the electrical pilot valve and plug socket, this piloted component mounts in any position and includes flange pneumatic working ports alongside a nominal width of 5.6 mm. Certified by c UL us under UL MH19482, the unit complies with EU and UKCA directives for EMC, low voltage, and RoHS. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033543
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033543.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 570 l/min...680 l/min
- Pneumatic working port
- Flange
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | With electrical pilot valve and plug socket
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Suitability for vacuum
- Yes
- Changeover time
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
