8033544

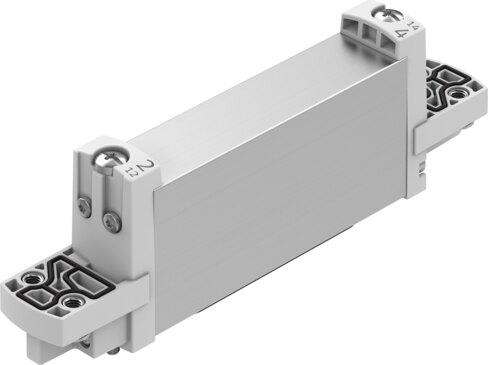

Name: Festo 8033544 Air solenoid valve VUVG-B14-P53C-Z-F-P1
Brand: Festo

Air solenoid valve VUVG-B14-P53C-Z-F-P1

The Festo part number 8033544 is a 14 mm electrical piston gate valve featuring a 5/3-way closed valve function, a soft sealing principle, and a positive overlap lap. This piloted component delivers a normal nominal flow rate ranging from 520 l/min to 600 l/min across an operating pressure of -0.09 MPa to 1 MPa, incorporating an adjustable exhaust air function, an external pilot air supply port, and a mechanical spring reset method. It carries an IP65 degree of protection when equipped with the electrical pilot valve and plug socket, alongside c UL us recognition with certificate issuing authority UL MH19482, plus CE and UKCA markings compliant with applicable EU and UK directives for EMC, low voltage, and RoHS. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033544
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033544.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3-way, closed
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 520 l/min...600 l/min
Pneumatic working port: Flange
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: UL MH19482
Degree of protection: IP65 | With electrical pilot valve and plug socket
Nominal width: 5.6 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: Yes
Switching time oﬀ: 24 ms
On switching time: 14 ms
Changeover time: 20 ms
Duty cycle: 100%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8033544. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
