Festo
8033545

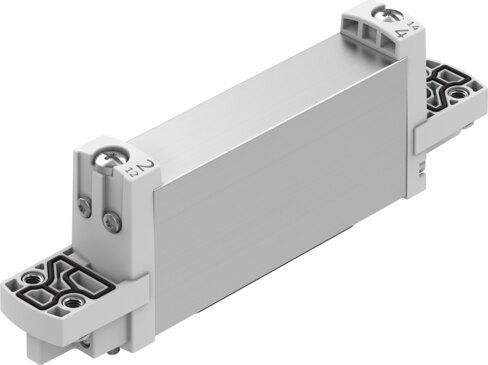

Air solenoid valve VUVG-B14-P53E-Z-F-P1
The Festo 8033545 is an electrical 14 mm industrial component featuring a 5/3 exhausted valve function with a piston gate valve structural design and mechanical spring reset method. It delivers a normal nominal flow rate ranging from 460 l/min to 600 l/min through a flange pneumatic working port at an operating pressure of -0.09 MPa to 1 MPa. This piloted unit includes adjustable exhaust air function, an external pilot air supply port, positive overlap lap, a soft sealing principle, and an IP65 degree of protection with an electrical pilot valve and plug socket. It carries c UL us recognition, UL MH19482 certification, and CE and UKCA markings per applicable EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033545
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033545.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 460 l/min...600 l/min
- Pneumatic working port
- Flange
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | With electrical pilot valve and plug socket
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Switching time off
- 24 ms
- On switching time
- 14 ms
- Changeover time
- 20 ms
- Duty cycle
- 100%
