Festo
8033552

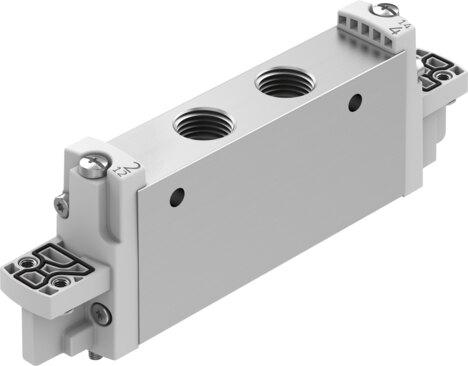

Air solenoid valve VUVG-L18-T32H-M-G14-P1
The Festo 8033552 is an 18 mm electrical piston gate valve featuring a 2x3/2 open/closed monostable valve function, internal pilot air supply, and a positive overlap lap. This piloted component delivers a normal nominal flow rate of 920 l/min through G1/4 pneumatic working ports across an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). It incorporates a mechanical spring reset, soft sealing principle, adjustable exhaust air function, and IP65 degree of protection when fitted with the electrical pilot valve and plug socket. Certified by c UL us under UL MH19482, this unit carries CE and UKCA markings conforming to applicable EU and UK directives for EMC, low voltage, and RoHS. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033552
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033552.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 920 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | With electrical pilot valve and plug socket
- Nominal width
- 5.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...0.8 MPa
- Pilot pressure
- 2 bar...8 bar
- Switching time off
- 15 ms
- On switching time
- 16 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse on 1 signal
- 900 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033552. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
