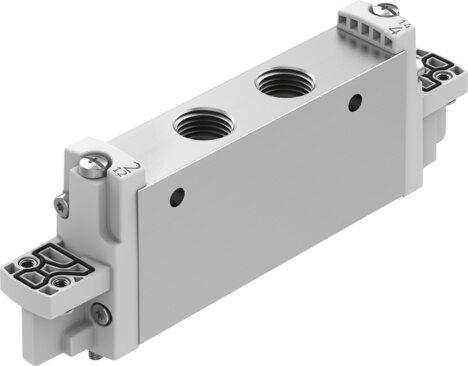

Reference imageConfirm configuration by manufacturer part number.
Festo
8033558
Air solenoid valve VUVG-L18-P53U-G14-P1
The Festo 8033558 is an electrical 18 mm piston gate valve featuring a 5/3-way pressurized valve function and a nominal flow rate of 1000 l/min normalized to DIN 1343. This piloted component operates within a pressure range of 0.3 MPa to 0.8 MPa utilizing an internal pilot air supply, mechanical spring reset, and adjustable exhaust air function with G1/4 pneumatic working ports. It carries c UL us recognition, UL certificate MH19482, and CE and UKCA markings per applicable EMC, low voltage, and RoHS directives, while achieving an IP65 degree of protection when fitted with the electrical pilot valve and plug socket. Request a formal quote by submitting the exact part number, quantity, and application parameters.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033558
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033558.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | With electrical pilot valve and plug socket
- Nominal width
- 6.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Indeterminate overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Switching time off
- 32 ms
- On switching time
- 15 ms
- Changeover time
- 21 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033558. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
