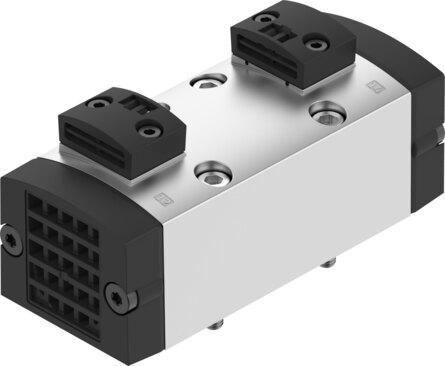

Name: Festo 8033643 Pneumatic valve VSPA-B-P53U-D1
Brand: Festo

Pneumatic valve VSPA-B-P53U-D1

The Festo part number 8033643 is a 42 mm wide pneumatic industrial component featuring a 5/3-way pressurized valve function and a piston gate valve structural design. This directly controlled unit provides a standardized nominal flow rate of 1600 l/min, an 8 mm nominal width, and an operating pressure range of -0.9 bar to 16 bar with soft sealing and vacuum suitability. It incorporates an external pilot air supply port, a reversible flow direction, and an exhaust air function via an individual sub-base matching ISO 5599-1 size 1 specifications. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033643
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033643.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3-way, pressurized
Actuation type: Pneumatic
Width: 42 mm
Nominal ow rate standardized according to ISO 8778: 1600 l/min
Pneumatic working port: Sub-base, size 1 according to ISO 5599-1
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
Nominal width: 8 mm
Exhaust air function: Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Type of control: directly
Pilot air supply port: External
Flow direction: Reversible
Lap: Positive overlap
Pilot pressure MPa: 0.3 MPa...1.6 MPa
Pilot pressure: 3 bar...16 bar
Suitability for vacuum: Yes
b-value: 0.14
C value: 6799 l/sbar
Flow rate of pneumatic valve: 1500 l/min
Flow rate of pneumatic valve on individual sub-base: 1300 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...60 °C
Noise level: 85 dB(A)
