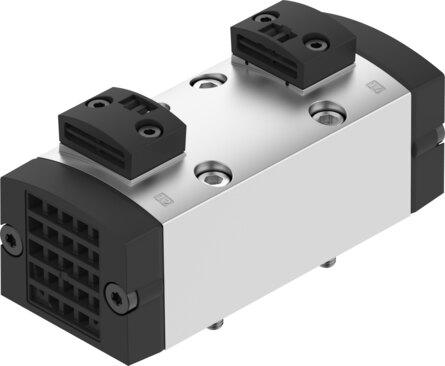

Reference imageConfirm configuration by manufacturer part number.
Festo
8033644
Pneumatic valve VSPA-B-T32C-M-D1
The Festo 8033644 is a 42 mm wide pneumatic industrial component featuring a 2x3/2 closed, monostable piston gate valve design with a soft sealing principle and positive overlap. This directly controlled unit utilizes an external pilot air supply port, operates within a pressure range of -0.9 bar to 10 bar, and delivers a standardized nominal flow rate of 1400 l/min according to ISO 8778 with a nominal width of 8 mm. Featuring a mechanical spring reset method, non-reversible flow direction, and vacuum suitability, it mounts in any position and interfaces with an ISO 5599-1 size 1 sub-base for individual exhaust air routing. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033644
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033644.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Pneumatic
- Width
- 42 mm
- Nominal ow rate standardized according to ISO 8778
- 1400 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 8 mm
- Exhaust air function
- Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1.6 MPa
- Pilot pressure
- 3 bar...16 bar
- Suitability for vacuum
- Yes
- b-value
- 0.18
- C value
- 5293 l/sbar
- Flow rate of pneumatic valve
- 1300 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1100 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
