Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

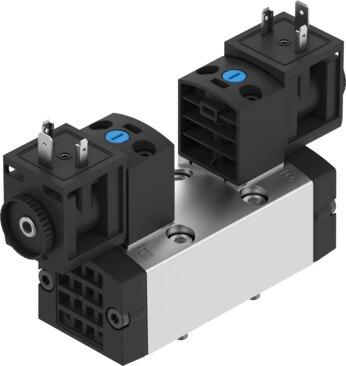

Reference imageConfirm configuration by manufacturer part number.
Festo
8033697
Solenoid valve VSVA-B-P53U-D-D1-F8-1A1
The Festo 8033697 is a 5/3-way pressurized electrical industrial component featuring a piston gate valve structural design and a nominal width of 8 mm. This piloted valve operates on 24V DC within an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar) and achieves a standardized nominal flow rate of 1600 l/min according to ISO 8778. Built with a 42 mm width, an IP65 and NEMA 4 degree of protection, and an ISO 5599-1 size 1 pneumatic working port sub-base, it includes a mechanical spring reset method, detenting manual override, and internal pilot air supply. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033697
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033697.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 42 mm
- Nominal ow rate standardized according to ISO 8778
- 1600 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- No
- b-value
- 0.14
- C value
- 6.799 l/sbar
- Flow rate of pneumatic valve
- 1500 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1300 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033697. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
