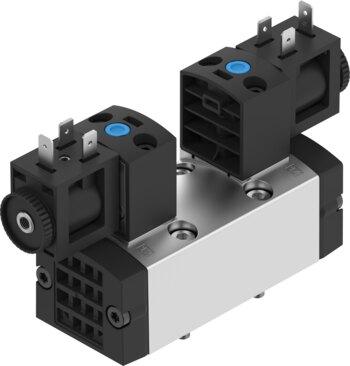

Reference imageConfirm configuration by manufacturer part number.
Festo
8033722
Solenoid valve VSVA-B-D52-ZH-D1-F8-1B2
The Festo 8033722 is an electrically actuated 5/2-way dominant, bistable piston gate valve featuring a 42 mm width, an ISO 5599-1 size 1 sub-base pneumatic working port, and a standardized nominal flow rate of 1800 l/min according to ISO 8778. Operating on 24V DC with an operating pressure range of -0.09 MPa to 1.6 MPa, this piloted component incorporates external pilot air supply, a soft sealing principle, adjustable exhaust air function via individual sub-base, and non-detenting manual override within an IP65 and NEMA 4 rated design. Submit part number 8033722, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033722
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033722.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Electrical
- Width
- 42 mm
- Nominal ow rate standardized according to ISO 8778
- 1800 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- b-value
- 1.5
- C value
- 7.663 l/sbar
- Flow rate of pneumatic valve
- 1700 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1400 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1600 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033722. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
