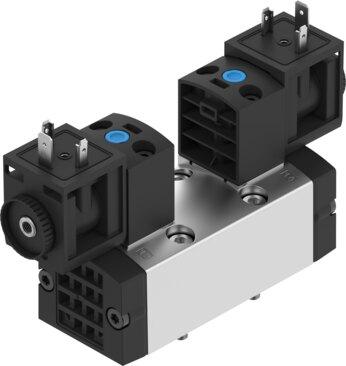

Reference imageConfirm configuration by manufacturer part number.
Festo
8033737
Solenoid valve VSVA-B-P53U-H-D1-F8-1A1
The Festo 8033737 is a 5/3-way pressurized industrial component utilizing an electrical actuation type, a piloted control system with internal pilot air supply, and a piston gate valve structural design. Featuring a 42 mm width, an ISO 5599-1 size 1 sub-base pneumatic working port, and a standardized nominal flow rate of 1600 l/min according to ISO 8778, this 24V DC unit operates between 0.3 MPa and 1 MPa (3 bar to 10 bar). It includes a mechanical spring reset method, soft sealing principle, non-detenting manual override, and adjustable exhaust air function via individual sub-bases, while achieving an IP65 and NEMA 4 degree of protection for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033737
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033737.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 42 mm
- Nominal ow rate standardized according to ISO 8778
- 1600 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- No
- b-value
- 0.14
- C value
- 6.799 l/sbar
- Flow rate of pneumatic valve
- 1500 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1300 l/min
