Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

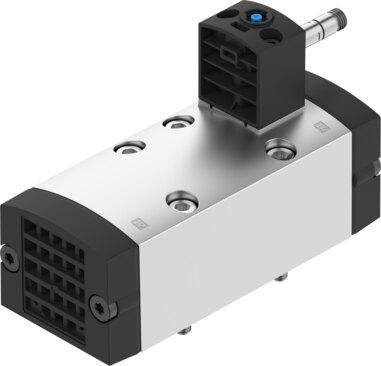

Reference imageConfirm configuration by manufacturer part number.
Festo
8033761
Solenoid valve VSVA-B-M52-MZT-D2-F8
The Festo 8033761 is a 5/2-way monostable industrial component featuring a piloted piston gate valve design with a nominal width of 11.5 mm and a width of 52 mm. This electrical component achieves a standardized nominal flow rate of 4100 l/min according to ISO 8778 across an operating pressure range of -0.9 bar to 16 bar. Constructed with soft seals and a mechanical spring reset, it includes a size 2 ISO 5599-1 pneumatic working port, external pilot air supply, and IP65 and NEMA 4 protection. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033761
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033761.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 52 mm
- Nominal ow rate standardized according to ISO 8778
- 4100 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11.5 mm
- Width dimension
- 53 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- b-value
- 0.3
- C value
- 8.168 l/sbar
- Flow rate of pneumatic valve
- 3800 l/min
- Flow rate of pneumatic valve on individual sub-base
- 3200 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2700 l/min
- Max. switching frequency
- 1 Hz
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033761. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
