Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

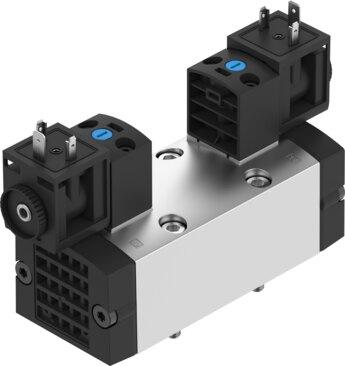

Reference imageConfirm configuration by manufacturer part number.
Festo
8033785
Solenoid valve VSVA-B-B52-D-D2-F8-1A1
The Festo 8033785 is a 5/2-way bistable industrial component featuring a piloted, piston gate valve design with electrical actuation and a 24V DC operating voltage. This unit delivers a standardized nominal flow rate of 4000 l/min through an 11.5 mm nominal width across a 52 mm width dimension, operating within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar). Conforming to ISO 5599-1 with an IP65 and NEMA 4 degree of protection, it includes internal pilot air supply, a soft sealing principle, detenting manual override, and adjustable exhaust air function via individual sub-base size 2 pneumatic working ports. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033785
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033785.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 52 mm
- Nominal ow rate standardized according to ISO 8778
- 4000 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11.5 mm
- Width dimension
- 53 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- No
- b-value
- 0.2
- C value
- 8.578 l/sbar
- Flow rate of pneumatic valve
- 3700 l/min
- Flow rate of pneumatic valve on individual sub-base
- 3100 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2600 l/min
- Max. switching frequency
- 5 Hz
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033785. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
