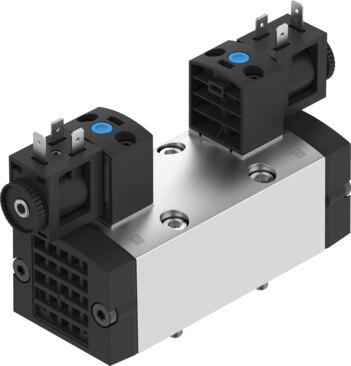

Reference imageConfirm configuration by manufacturer part number.
Festo
8033816
Solenoid valve VSVA-B-D52-ZH-D2-F8-1B2
The Festo 8033816 is a 5/2-way dominant, bistable industrial component featuring electrical actuation and a piston gate valve structural design with a soft sealing principle. It delivers a standardized nominal flow rate of 4000 l/min across an operating pressure range of -0.09 MPa to 1.6 MPa, integrating a size 2 ISO 5599-1 pneumatic working port, a 24V DC operating voltage, and an IP65 and NEMA 4 degree of protection. Configured with a 11.5 mm nominal width, 52 mm width, reversible flow direction, external pilot air supply port, and adjustable exhaust air function via individual sub-base, this unit supports any mounting position and features a non-detenting manual override. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033816
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033816.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Electrical
- Width
- 52 mm
- Nominal ow rate standardized according to ISO 8778
- 4000 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11.5 mm
- Width dimension
- 53 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- b-value
- 0.26
- C value
- 8.272 l/sbar
- Flow rate of pneumatic valve
- 3700 l/min
- Flow rate of pneumatic valve on individual sub-base
- 3100 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2700 l/min
- Max. switching frequency
- 5 Hz
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8033816. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
