Festo
8033829

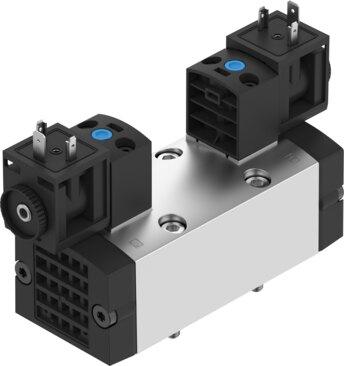

Solenoid valve VSVA-B-P53C-H-D2-F8-1A1
The Festo 8033829 is a 5/3-way closed electrical industrial component featuring a piston gate valve structural design with a soft sealing principle and a 11.5 mm nominal width. Operating on 24V DC with an internal pilot air supply, it delivers a standardized nominal flow rate of 3700 l/min across an operating pressure range of 3 bar to 10 bar (0.3 MPa to 1 MPa). This unit includes an ISO 5599-1 size 2 sub-base pneumatic working port, a non-detenting manual override, a mechanical spring reset method, and an IP65 / NEMA 4 degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8033829
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8033829.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 52 mm
- Nominal ow rate standardized according to ISO 8778
- 3700 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11.5 mm
- Width dimension
- 53 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- No
- b-value
- 0.26
- C value
- 7.696 l/sbar
- Flow rate of pneumatic valve
- 3500 l/min
- Flow rate of pneumatic valve on individual sub-base
- 2800 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2600 l/min
