8033845

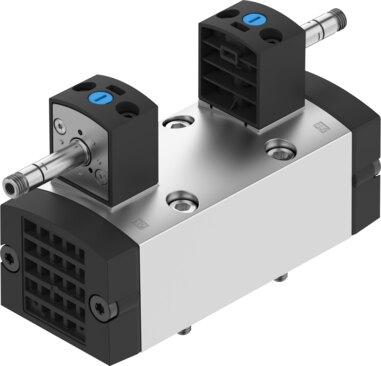

Name: Festo 8033845 Solenoid valve VSVA-B-.-F.
Brand: Festo

Solenoid valve VSVA-B-.-F.

The Festo 8033845 is an electrically actuated industrial component featuring a piston gate valve structural design with internal or external pilot air supply ports and multiple configurable valve functions, including 2/2-way, 3/2-way, and 5/2-way to 5/3-way configurations. This unit delivers a standardized nominal flow rate ranging from 1400 l/min to 4100 l/min across an operating pressure of -0.9 bar to 16 bar, utilizing soft sealing, mechanical or pneumatic spring reset methods, and IP65 or NEMA 4 protection conforming to ISO 5599-1 standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8033845
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8033845.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2/2-way, closed, monostable | 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, dominant, bistable | 5/2-way, monostable | 5/3 pressurized 1 to 2, 4 to 5 closed | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed | 5/3, connection 2 pressurized, 4 exhausted | 5/3, connection 4 pressurized, 2 exhausted
Actuation type: Electrical
Nominal ow rate standardized according to ISO 8778: 1400 l/min...4100 l/min
Operating pressure: -0.9 bar...16 bar
Structural design: Piston gate valve
Reset method: Mechanical spring | Pneumatic spring
Degree of protection: IP65 | NEMA 4
Nominal width: 11.5 mm | 8 mm
Width dimension: 43 mm | 53 mm
Exhaust air function: Adjustable | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting | None | Detenting via accessory | Non-detenting
Type of control: Piloted
Pilot air supply port: External | Internal

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8033845. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
