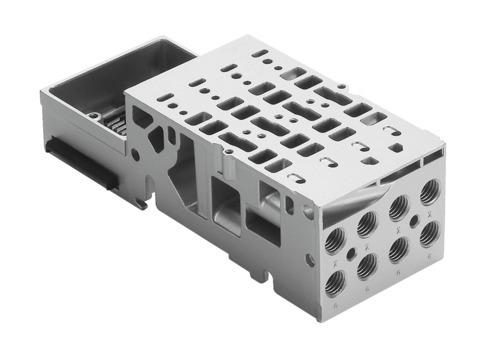

Name: Festo 8034549 Sub-base VMPA1-FB-AP-4-1-T1-RV
Brand: Festo

Sub-base VMPA1-FB-AP-4-1-T1-RV

The Festo 8034549 is an industrial component featuring a die-cast aluminum sub-base with a width of 49 mm, a length of 107.3 mm, a width dimension of 10.5 mm, and a product weight of 190 g. This part accommodates a maximum of four valve positions and operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4]. Built with RoHS-compliant materials, it features a corrosion resistance class of CRC 0 and LABS conformity according to VDMA24364-B1/B2-L for ambient temperatures between -5 °C and 50 °C. Request a quote for this Festo part number by submitting your exact quantity and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8034549
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8034549.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 49 mm
Length: 107.3 mm
Width dimension: 10.5 mm
Max. no. of valve positions: 4
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -5 °C...50 °C
Product weight: 190 g
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8034549. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
