Reference imageConfirm configuration by manufacturer part number.
Festo
8034550

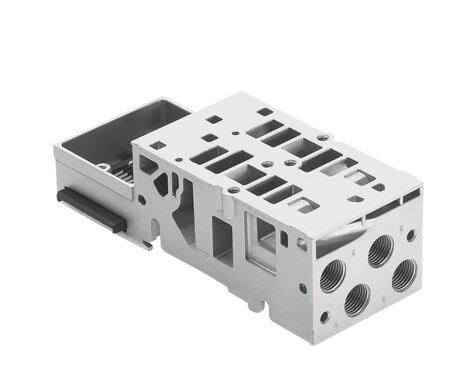

Sub-base VMPA2-FB-AP-2-1-T0-RV
The Festo part number 8034550 is an industrial component with a die-cast aluminum sub-base measuring 52 mm in width, 107.3 mm in length, and a width dimension of 21 mm. Weighing 190 g, this RoHS-compliant unit accommodates up to 2 valve positions and operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:4:4]. It requires a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), features a corrosion resistance class of CRC 0, adheres to VDMA24364-B1/B2-L LABS conformity, and functions at ambient temperatures from -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8034550
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8034550.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Length
- 107.3 mm
- Width dimension
- 21 mm
- Max. no. of valve positions
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 190 g
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8034550. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
