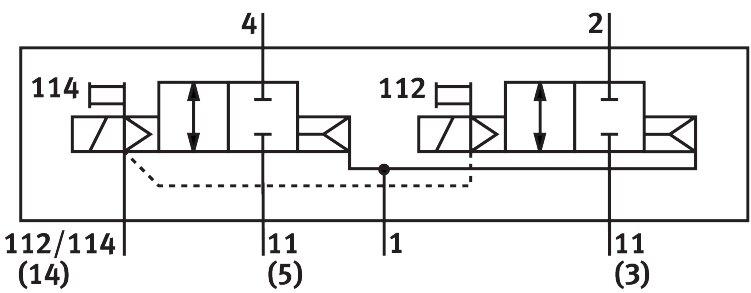

Reference imageConfirm configuration by manufacturer part number.
Festo
8034782
Air solenoid valve VSVA-B-T22CV-AZTR-D1-1T1L
The Festo 8034782 is a 42 mm electrical industrial component featuring a 2x2/2 closed, monostable piston gate valve structure with a soft sealing principle and piloted control type. Operating on 24V DC within an operating pressure range of -0.9 bar to 10 bar, this unit delivers a normal nominal flow rate of 1400 l/min and incorporates an IP65 and NEMA 4 degree of protection with LED signal status display. It includes a pneumatic spring reset method, adjustable exhaust air function via individual sub-base, external pilot air supply port, and ISO 5599-2 size 1 sub-base or G3/8 pneumatic working ports with c UL us recognition. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8034782
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8034782.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2 closed, monostable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Pneumatic working port
- Sub-base, size 1 as per ISO 5599-2 | G3/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Any
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1600 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1400 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1500 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1400 l/min
- Switching time off
- 38 ms
- On switching time
- 20 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8034782. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
