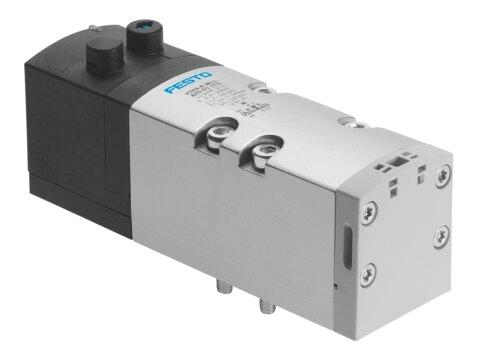

Reference imageConfirm configuration by manufacturer part number.
Festo
8034808
Air solenoid valve VSVA-B-M52-MZH-D1-1T1L
The Festo 8034808 is a 5/2-way monostable industrial component featuring an electrical actuation type, a piston gate valve structural design, and a 42 mm width. Operating on 24V DC with a normal nominal flow rate of 1300 l/min and an operating pressure range of -0.09 MPa to 1 MPa, this piloted unit includes a mechanical spring reset, soft sealing principle, LED signal status display, and non-detenting manual override. It provides IP65 and NEMA 4 protection, features external pilot air supply ports with pilot pressures from 0.3 MPa to 1 MPa, and accommodates sub-base ISO 5599-2 or G3/8 pneumatic working ports with adjustable exhaust air function via throttle plate or individual sub-base. Submit the exact part number, quantity, and application requirements to request a quote for this c UL us recognized component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8034808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8034808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- Sub-base, size 1 as per ISO 5599-2 | G3/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Any
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1800 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1500 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1860 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1300 l/min
- Switching time off
- 60 ms
- On switching time
- 22 ms
