Name: Festo 8034834 Air solenoid valve VSVA-B-T32H-AZ-D1-1T1L
Brand: Festo

Air solenoid valve VSVA-B-T32H-AZ-D1-1T1L

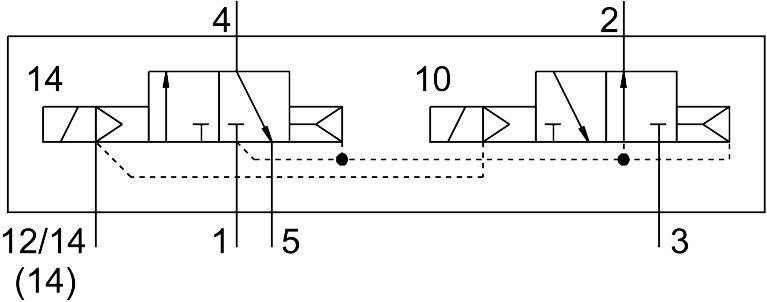

The Festo 8034834 is an electrically actuated industrial component featuring a 2x3/2, open/closed, monostable valve function with a 42 mm width and a piston gate valve structural design. Operating on 24V DC within a 3 bar to 10 bar operating pressure range, this unit delivers a normal nominal flow rate of 1200 l/min and incorporates soft sealing, external pilot air supply, and an adjustable exhaust air function via a throttle plate or individual sub-base. It holds a c UL us recognized certification with an IP65 and NEMA 4 degree of protection, featuring a covered manual override, LED signal status display, and ISO 5599-2 size 1 sub-base or G3/8 pneumatic working ports. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8034834
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8034834.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2, open/closed, monostable
Actuation type: Electrical
Width: 42 mm
Normal nominal ow rate (normalized to DIN 1343): 1200 l/min
Pneumatic working port: Sub-base, size 1 as per ISO 5599-2 | G3/8
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | NEMA 4
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Manual override: Covered
Type of control: Piloted
Pilot air supply port: External
Flow direction: Non-reversible
Signal status display: LED
Pilot pressure MPa: 0.3 MPa...1 MPa
Pilot pressure: 3 bar...10 bar
Flow rate of pneumatic valve: 1400 l/min
Flow rate of pneumatic valve on individual sub-base: 1200 l/min
Optimized ow rate of pneumatic valve, pneumatically concatenated: 1300 l/min
Optimized ow rate of pneumatic valve pneumatically concatenated ow: 1200 l/min
Switching time oﬀ: 20 ms
On switching time: 38 ms
Max. positive test pulse with 0 signal: 1600 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8034834. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
