Festo
8034985

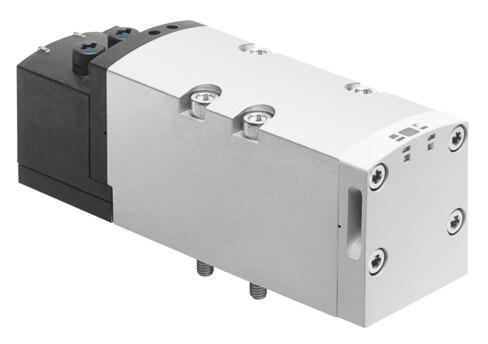

Air solenoid valve VSVA-B-D52-Z-D2-1T1L
The Festo 8034985 is an electrical 5/2-way dominant, bistable piston gate valve featuring a piloted control type with external pilot air supply and a soft sealing principle. Operating at 24V DC across a pressure range of -0.9 bar to 10 bar, this unit delivers a normal nominal flow rate of 2900 l/min through ISO 5599-2 size 2 sub-base or G1/2 pneumatic working ports. Built with a 52 mm width, IP65 and NEMA 4 degree of protection, and a covered manual override, it conforms to ISO 5599-2 standards with c UL us recognition, KC-EMV, and CE EMC compliance. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8034985
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8034985.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Electrical
- Width
- 52 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2900 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-2 | G1/2
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Degree of protection
- IP65 | NEMA 4
- Width dimension
- 59 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-2
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Any
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 4000 l/min
- Flow rate of pneumatic valve on individual sub-base
- 3400 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2900 l/min
- Changeover time
- 18 ms
